NL6448BC26-26F

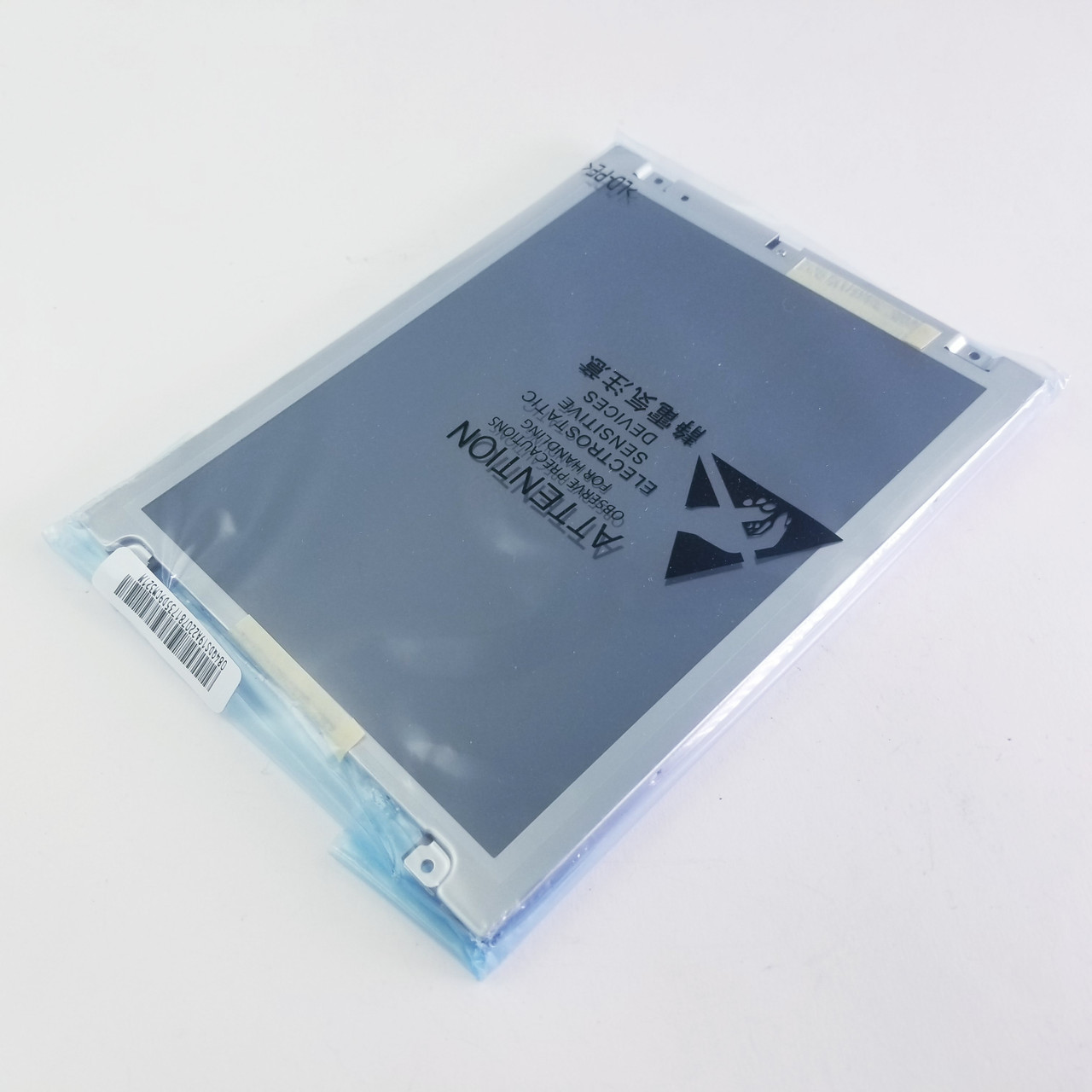

 Tianma 8.4" VGA Display LCD Touch Screen Panel 640 x 480 NL6448BC26-26F

Model   NL6448BC26-26F   Brand   NEC
Panel Size 8.4 inch

Resolution 640(RGB)×480 , VGA
 Active Area 170.88(W)×128.16(H) mm

Outline Size 200(W)×152(H) ×8.7(D) mm
 Contrast Ratio 1000:1 (Typ.) (TM)

Luminance 900 cd/m² (Typ.)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10)

Response Time 3/15 (Typ.)(Tr/Td)
 Panel Type a-Si TFT-LCD, LCM Touch Screen Without
 Signal Type CMOS (1 ch, 6-bit) , 31 pins , Connector Power Supply 3.3/5.0V (Typ.)
 About it NL6448BC26-26F NEC 8.4inch LCD Display new and original
